Poultry Isolators

Designed to protect both your fowl, and your personnel.

Plas-Labs

Plas-Labs is the world leader in acrylic containment—glove boxes, powder containment, low O2, Low RH, animal restraint and containment, vented balance enclosures, and isolators.

Request A Quote

Submit

We respect your privacy.

Want a quote with special pricing?
There are better deals to be had! Create an account with us or give us a call to learn more about account-specific pricing.

Create your account

Need an expert opinion?

If you have questions about configuration or finding the right accessories, give us a call. Our in-house experts know the ins and outs of every solution we carry because we service everything we sell.

Call us here

After you buy, you shouldn’t have to wait weeks for your gear to arrive. We ship fast so you can keep your cleanroom project on schedule.

We service everything we sell. That means you get faster troubleshooting support and better response times than you would with other manufacturers or manufacturer’s reps.

Special pricing is available for your business. Contact us and set up an account to make sure you get the best price available on every purchase.

We guarantee you’ll get the right instrument for your cleanroom. If it isn’t exactly right, we’ll swap it out and find the right choice. If for some reason we don’t carry what you need, we’ll point you to a source that does (we’ll never sell you an alternative that doesn’t do exactly what you need it to do).

Description

Summary

The Plas-Labs’ goal pertaining to H.E.P.A. filtration of its chambers is to ensure absolute filtration, yet make filter change-over simple and quick. Both the H.E.P.A. filter and blue pre-filters can be changed in seconds.

These poultry isolation units are designed to protect both your fowl and personnel from cross contamination. They are ideal for either acute or chronic studies. The isolation cubicles are match die-molded of “hi-tech” thermoplastic allowing for autoclaving or steam sterilization. The problem of hypothermia is eliminated. Individual cubicles can be removed for cleaning, but it is not normally necessary. The polycarbonate doors are mounted using stainless steel “slip-a-part” hinges for easier cleaning.

Standard Features of the Poultry Isolators:

Match die-molded animal housings. With autoclavable or steam cleaning capabilities.
Stainless steel support frame (trolley) with casters, brakes and locks.
Removable polycarbonate front door with slip-a-part stainless steel hinges.
High temperature gasket material.
Electrical control panel can be removed during cleaning.
Digital temperature controller and thermocouple.
Red heat lamp with adjustable intensity.
Gravity fed stainless steel feeder chute and adjustable feed box with sight gauge. Capacity: 6 to 12 pounds. (Depends on size of cubicle)
Gravity fed adjustable watering “T” with two or three water cups. All stainless steel.
Fast acting “squeeze” adjuster for the watering “T”.
Stainless steel floor grid.
Formed white waste pan with rounded corners.
Lower “trap” door for removing the waste pan. No disruption of the birds.
Cylindrical H.E.P.A. filters for air make up and exhaust. Allowing for easy and quick filter changing.
Reusable (hand washable) polyester pre-filters rated MERV 4.
Squirrel cage blower for air make up or exhaust. Negative pressure standard, but positive pressure is available upon request. Includes an orifice for testing the H.E.P.A. efficiency. “DOP/PAO” testing capable.
Electrical set-up for either 115-120 or 220-240 volts.
Standard Plas-Labs’ 12 month warranty against defective materials and workmanship. (Not the gloves or the filters).

Specifications:

Vertical Configurations

Catalog Number	Cubicle Size	Number of cubicles
FIC-30-1/PIU	30" x 30" x 30"	One (1)
FIC-30-2/PIU	Each cubicle: 30 x 30 x 30"	Two (2)

Horizontal Configurations

Catalog Number	Cubicle Size	Number of cubicles
FIC-36-1/PIU	36" x 36" x 36"	One (1)
FIC-36-2/PIU	Each cubicle: 36 x 36 x 36"	Two (2)

Housing Feeder & Watering Details

Feeder box in lower position. Seated in lower bracket for younger chicks.

Revised glove port plug, prevents birds from getting into glove port and suffocating.

Stainless steel feeder chute.

Stainless steel feed box with sight gauge. (Elevated position).

Removable stainless steel grid floor.

New “Coiled” flexible water hose can easily be attached to your house water supply.

New “Squeeze” adjustment for raising and lowering the water “T” system.

Stainless steel watering cups and “T” bar.

Stainless steel feeder chute and removable chute plug.

Optional Accessories for the Poultry Isolation Units:

Ambidextrous white Hypalon gloves. Glove port plugs are included. Plugs prevent birds from entering ports and suffocating. (Catalog: 800-PIU/PORTS)
Access port for removing sick, injured, or dead birds. (Catalog: 800-PIU/ACCESS/P)
Interior “anti-escape” shield (polycarbonate). Catalog: 800-PIU/ES

REMOVABLE WASTE PAN AND LOWER TRAP DOOR (Included)
Each housing cubicle includes a formed white plastic waste pan that is removable without disturbing your birds.
The lower trap door is standard, but can be eliminated if the customer prefers.
New “Sealed” living hinge for lower trap clean-out door.

800-PIU/PORTS White hypalon ambidextrous gloves and ports.

800-PIU/ACCESS/P, Access port with inner and outer doors.

800-PIU/ACCESS/D. Flat access door only.

800-PIU/ES, Escape Shield

Removable cubicle divider

HEPA Filter & Exhaust Blower Housing Details

Choose negative or positive pressure set-up. Pressure direction is determined by end-user’s requirements.
Filter housings have stainless steel “slip-a-part” hinges and clamps for easy removal when cleaning.
Cylindrical H.E.P.A. filters are 8” (203 mm) in diameter. 99.99% @ .3μm .
The blower housing also has the same “slip-a-part” hinge and clamping system.
Pre-filters are hand washable, three (.5μ) micron spun polyester.

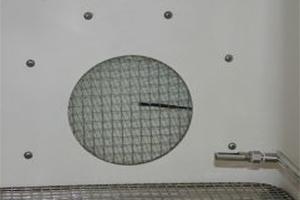

The thermocouple wire is inserted between the HEPA filter and inner cage wall.

Open clear plastic housing to install the replacement HEPA filter.

The blue “pre-filter” is placed in front of the exhaust HEPA filter. Place pre-filter on the outside of the air make up filter.

Removable Electric Control Panel

All electrical controls are mounted on a stainless steel panel that can be removed in seconds for cleaning the isolation unit. Using our unique “Key Way” technique, no tools are required.

Two (2) upper “Key Way” slots for mounting or removing control panel.
New digital heat control module, #DBS 1000 for upper housing thermocouple.
Just push a button and scroll to your desired temperature.
Temperature thermocouple. The tip is placed inside the exhaust H.E.P.A. filter housing. Same on the bottom H.E.P.A.
Electrical sockets for both the upper heat lamp and blower.
Variable speed controls for fans, (blowers).
20 Amp Ground Fault Interrupter (G.F.C.I.). Safety socket. Reset button.
Electrical sockets for both the lower heat lamp and the blower.
New digital heat control module, #DBS 1000 for lower housing with thermocouple. Just push a button and scroll to your desired temperature.
