Medical Cleaning System (MCS)

Summary

The Static Clean Medical Cleaning System (MCS) is a powerful particulate control / source capture control tool in the Particle Trap® family of products designed to improve yields by reducing rework on devices and packaging.  Perfect applications include:

• medical device manufacturing and packaging

• electronics

• food processing and packaging

• pharmaceuticals

No more blowing particulate around the manufacturing environment or cleanroom causing re-contamination.  This problem occurs when using guns, nozzles, or other conventional blow-off devices that do not provide a means of capturing the dislodged particulates.  The Medical Cleaning System is ideal for particulate control on medical devices & packaging.

How It Works

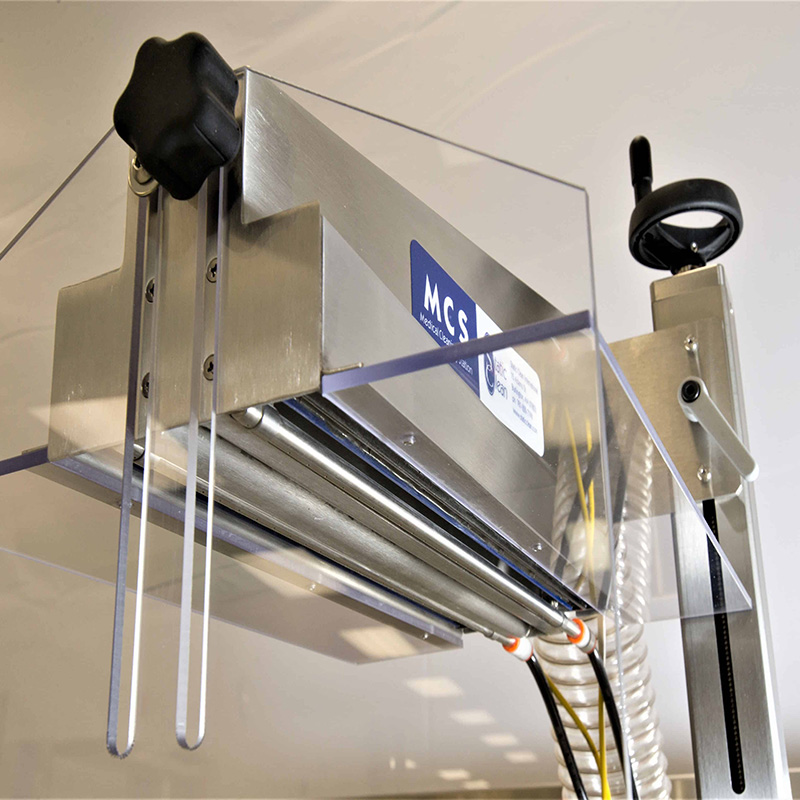

Parts are passed from one side of the Medical Cleaning System (the “pre-clean side”) over and through the cleaning zone in the work surface to the “clean side” of the system. The flush mounted bottom Vacuum Hood, which incorporates shockless DC static control bars and stainless steel compressed air tubes, removes dirt particles via static neutralizing.  Both the blister / part and surface particulates and the electrostatic attraction that bonds and holds particulates to the blister part are removed through a filtered dust collector.  This removal prevents recontamination due to static attraction. The upper hood of the Medical Cleaning System is adjustable to accommodate various sized parts or trays.

The powerful VQM5003H Dust Collector for the Medical Cleaning System draws a high volume of air into the cleaning hood, tapered along its length.  This achieves an even, turbulent slot velocity to effectively remove surface contaminants such as angel hair, dust, human body hair, skin flakes and airborne particles.  These contaminants cause rework and inefficiency resulting in poor profits and quality. The dust collector comes equipped with a magnehelic gauge, indicating the internal filter condition, and a HEPA Filter.  The HEPA filter is 99.99% efficient by weight on the air exhaust for use in a cleanroom environment — feeding clean air back into the environment.

Sizes

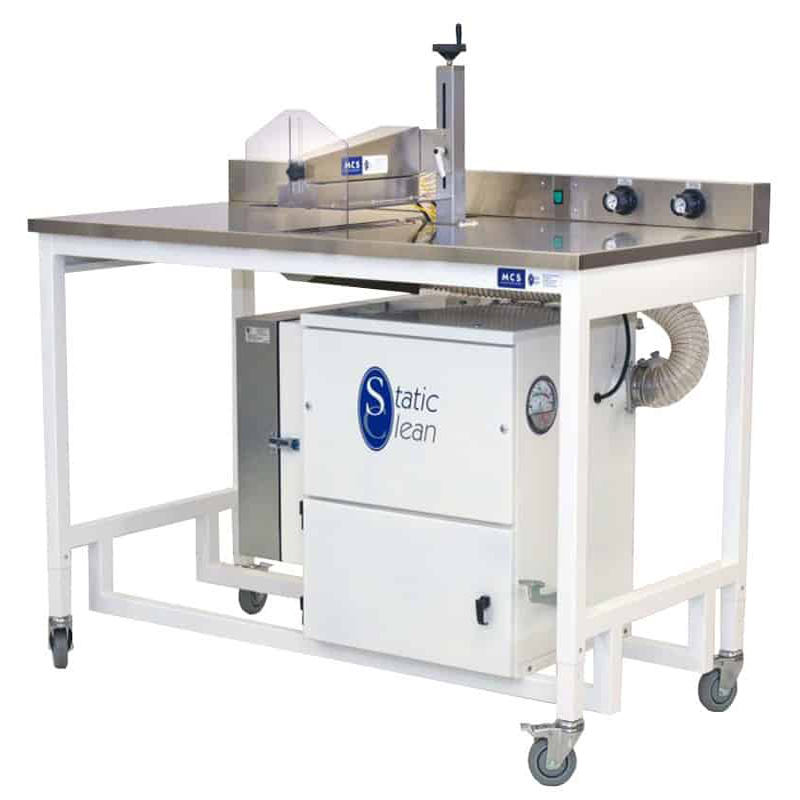

The Medical Cleaning System (MCS) for static particulate control and elimination is available in various sizes:

• 4-foot system (MCS-3048)

• 5-foot system (MCS-3060)

• 6-foot system (MCS-3072)

Options

Optional static ionizers are available for the clean side of the Medical Cleaning System to police the area and neutralize any static that is generated while handling and stacking the blisters / parts, preventing a build up of electrostatic charge that can cause recontamination.

The MCS Medical Cleaning System is available with our Flex Laminar Flow option that includes a HEPA Fan Filter unit & clear ESD softwall curtains.

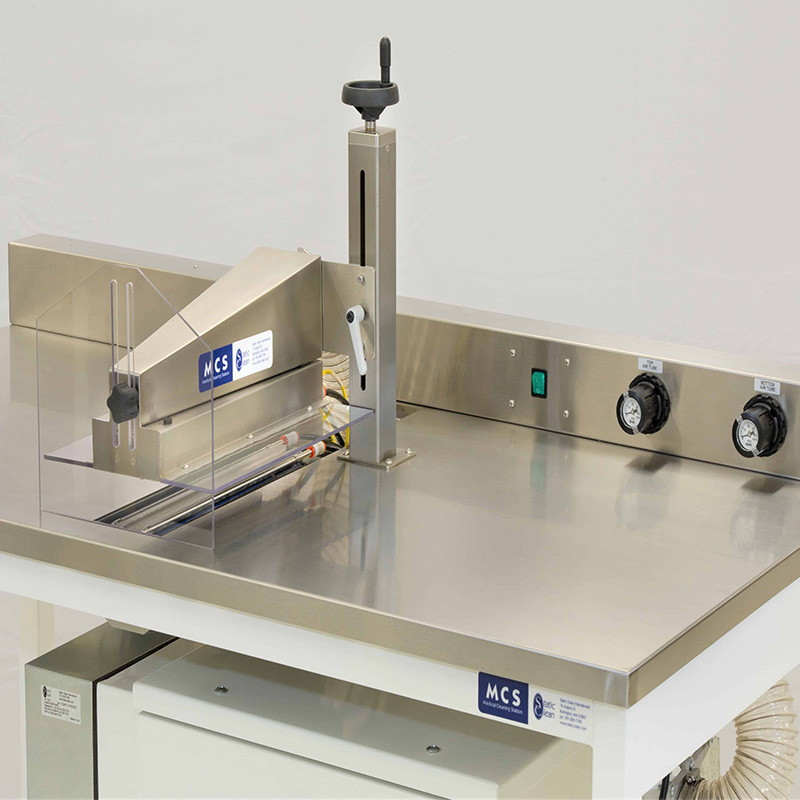

• Static Clean MBCH15SS Hood Assembly (affixed in a slot in the center (or other location) of the work surface)  consists of:

• 1 Stainless Steel 15″ Vac Hood

• 2 stainless steel air tubes

• 2 24vDC static bars

• Mounting brackets and inlet slide valve

• 2nd Static Clean 15″ Stainless Steel WebVac Hood mounted above first for simultaneous top and bottom cleaning (15″ is the most commonly purchased size for the hood assembly)

• Linear Height Adjustment Crank

• Rail Bins

• Laminar Flow Station w/ HEPA Filter and 40 mil vinyl ESD curtains

• Laminar Flow Ionization (for full station ionization)

Features

• 30″ deep x 4′, 5′, 6′ long x 37″ – 49″ high Work Bench

• Hydraulic height adjustment for ease of use

• Plastic laminate work surface for fast cleaning

• Locking swivel casters for portability

• Mounting rail positioned across the backside of the bench; Includes the Following:

• 125 volt / 15 amp power strip with switch; circuit breaker

• Compressed air filter/regulator gauge knobs mounted along the back rails for customer convenience and to change PSI pressure if required  (top and bottom air tube control)

• VQM5003H 300CFM Collector with HEPA; 3/4HP, 115/230/60/1 TEFC Motor; 300 CFM @ 3.75″ SP, only 28″ high with 30 sq. ft. of cotton sateen filter @ 99.9 % efficient by weight

• 2 Compressed air filter / regulator with 0.03 micron coalescing filter

SPEC SHEET
