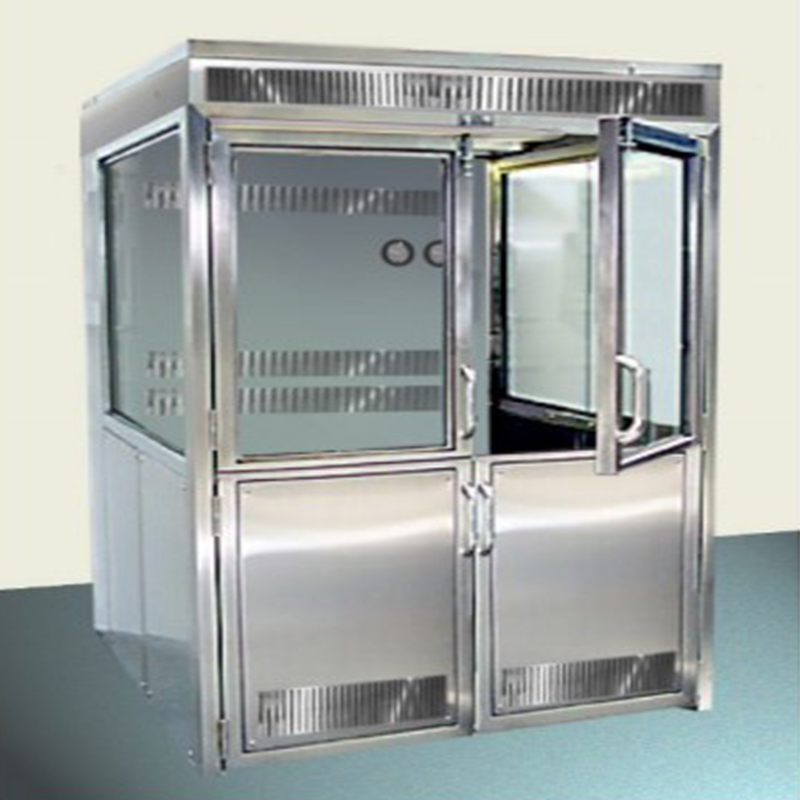

Solvent Drum Sampling & Fume Extraction Booth
ISI
Isolation Systems, Inc designs and manufactures custom, GMP aseptic containment, RABS, and isolators.
Request A Quote
We respect your privacy.

Want a quote with special pricing?
There are better deals to be had! Create an account with us or give us a call to learn more about account-specific pricing.
Create your account

Need an expert opinion?
Call us here




Standard Features:
304 stainless steel construction with #4 finish.
2” sq. 14 ga 304 stainless steel structural frame with #4 finish with 6” sq. foot plates.
Adjustable Damper intakes on rear wall and ceiling.
Cl-1 Div-1 flush mounted fluorescent lighting 120 V
304 stainless steel side walls with removable service access panels.
Clear 1/4” thick half light safety glass view panels both sides and doors
Split door access for drum introduction and manipulation
Magnehelic gages to monitor system pressure differential.
Cl-1 Div-1 lighting on/off switches.
Electrical: 120V / 60HZ / 1ph.
Adjustable leg levelers
Constant volume
Optional Features:
316L stainless steel construction.
Activated Carbon filtration
Polypropylene interior liner
PVC interior liner.
Custom sizes and configurations.
Hydraulic Drum Lift System
Carbon Filtration Module
Clear acrylic enclosure panels. (antistatic available).
Clear PVC anti-static curtain enclosure.
Audible visual alarm.
Electrical outlets.
Remote located control panels.
Custom ducting for total or mixed exhaust applications.
Top-side mounted blower housing.
Polyurethane coated CRS construction.
Integral perforated work bench.
Grated Flooring
Spill collection and retention basin
Volumetric exhaust control system
Note:
All electrical wiring is in conformance with NEMA and NEC standards.
Isolation Systems, Inc. inspection reports available upon request.
