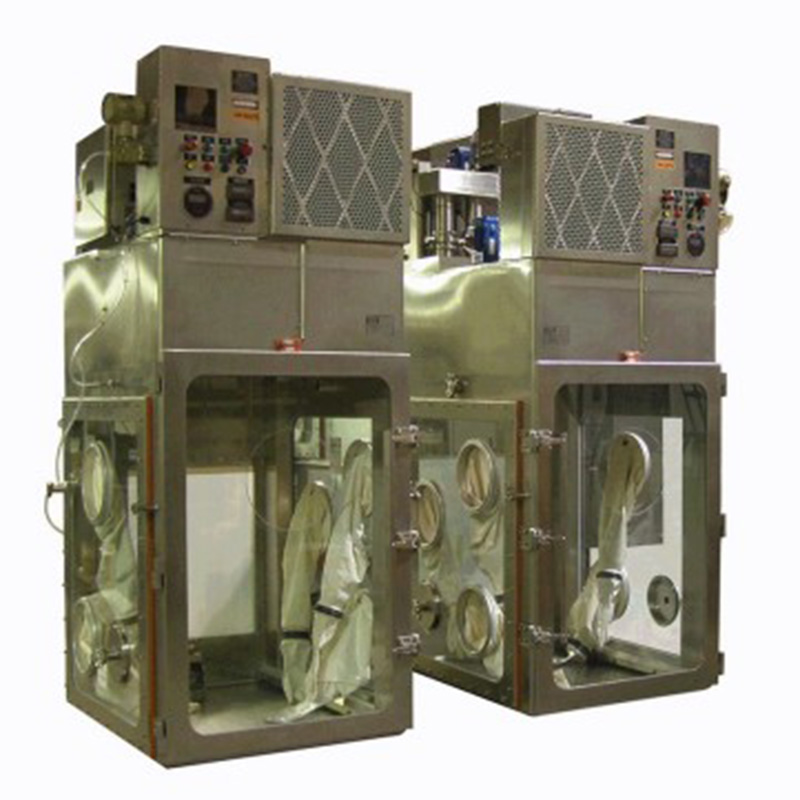

Rapid VHP Decontamination Chamber

ISI

Isolation Systems, Inc designs and manufactures custom, GMP aseptic containment, RABS, and isolators.

Request A Quote

Submit

We respect your privacy.

Want a quote with special pricing?
There are better deals to be had! Create an account with us or give us a call to learn more about account-specific pricing.

Create your account

Need an expert opinion?

If you have questions about configuration or finding the right accessories, give us a call. Our in-house experts know the ins and outs of every solution we carry because we service everything we sell.

Call us here

After you buy, you shouldn’t have to wait weeks for your gear to arrive. We ship fast so you can keep your cleanroom project on schedule.

We service everything we sell. That means you get faster troubleshooting support and better response times than you would with other manufacturers or manufacturer’s reps.

Special pricing is available for your business. Contact us and set up an account to make sure you get the best price available on every purchase.

We guarantee you’ll get the right instrument for your cleanroom. If it isn’t exactly right, we’ll swap it out and find the right choice. If for some reason we don’t carry what you need, we’ll point you to a source that does (we’ll never sell you an alternative that doesn’t do exactly what you need it to do).

Description

Standard Features:

Fully welded 12 ga. 316L stainless steel construction with #4 finish on both exterior and interior surfaces. All welds are ground smooth and polished to matching finish.
Compression sealed door.
All interior corner transitions are coved 1” radius.
Support frame is 14 ga 2” sq. 304 stainless steel tube with a brushed #4 finish with Polyurethane swivel /locking casters.
1/4 “thick clear laminated safety glass view panel. potted into door frame for enhanced seal integrity.
Integrated automatically actuated VHP introduction and extraction circuit.
Sliding tray and internal storage system.
Lighting is LED type.
Low pressure audible visual alarm.
Minihelic Differential Pressure Gauge 0-2” wg to monitor supply HEPA pressure differential.
Magnehelic Differential Pressure Gauge to monitor chamber pressurization.
Power and light switches.
Connections for VHP level monitoring.
Tri-clamp and cap penetrations into main chamber for service connections.
Transfer chamber VHP introduction as required.

Optional Features:

Steritest Equinox Isofit pump.
VHP generator.
PLC control all functions of isolator and gassing cycle.
Security sensor for VHP High & Low Levels.
Integrated VHP circuit.
In Lab VHP security monitoring system.
Sterisart NF Sartorius.
VHP cycle development & PQ.
Humidity and temperature sensor.
Paperless data recorder.
Rapid decontamination chamber.
Air flow sensor.
Viable impactor.
Viables testing.
Particle counter.
Hydraulic Height adjustment.
8” dia. round glove ports with compression seal rings.
Motorized supply HEPA filtration 99.99% [email protected] .3 microns. Gel seal to chamber.
One piece Hypalon rubber gloves and sleeves.

Standards Conformance:

Complies with AGS-G001 guidelines for glove box standards.
All stainless steel materials used in the construction of this equipment conforms to AISI and SAE standards.
All filters are PSL challenged at factory to insure media integrity. Certificates of conformance are available upon request.
System performance meets or exceeds standards as specified in Fed. Std. 209E for Class 100 /ISO-5 conditions and IES-RP-CC-002.
USP 797 & 800 compliant.
All electrical wiring is in conformance with NEMA standards.
All sealants and gaskets are FDA approved.
Complete test procedures and protocols available upon request.
