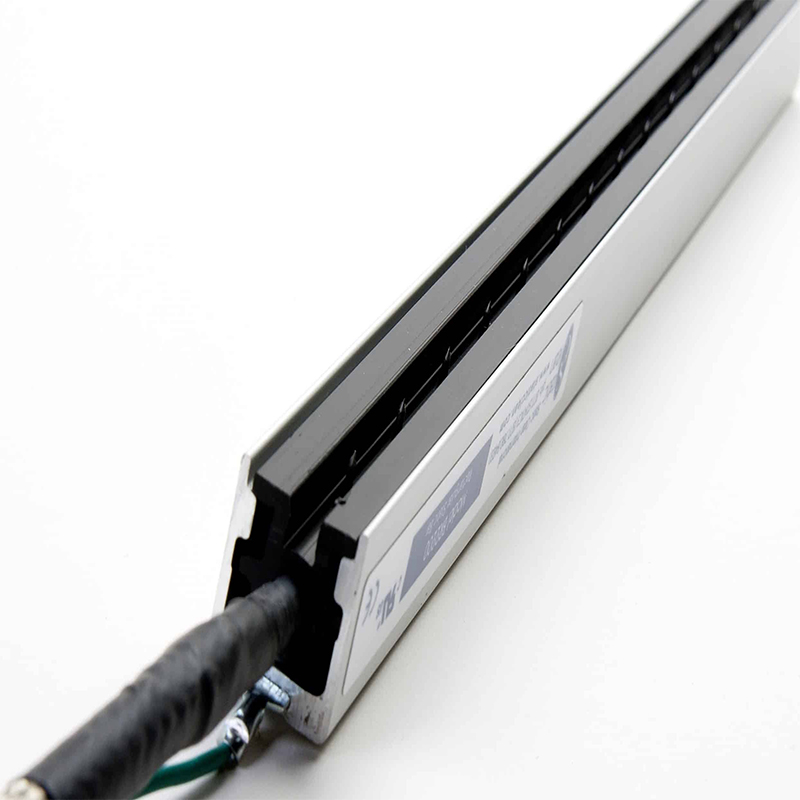

BRE2200 Rectangular Static Bar

The BRE2200 Rectangular Static Bar is a “shockless” linear air ionizer that generates a dense field of positive & negatively charged air ions. Exposing materials to this field efficiently neutralizes electrostatic charges that can cause a myriad of costly process, quality or safety issues; material jams, clogs, mis-feeds, poor stacking, reduced transport speeds, shock to operators, fires, explosions and a variety of ESA (electrostatic attraction) contamination related issues to name a few.

0.00 0.0 USD


    This combination does not exist.

    Add to Cart


    Static Clean
    Static Clean

    Static Clean provides not only specific process static control but also captures the loose, dry particles captured.


    Request A Quote

    We respect your privacy.


    Want a quote with special pricing?
    There are better deals to be had! Create an account with us or give us a call to learn more about account-specific pricing.

    Create your account


    Need an expert opinion?

    If you have questions about configuration or finding the right accessories, give us a call. Our in-house experts know the ins and outs of every solution we carry because we service everything we sell.

    Call us here

    Fast Shipping
    After you buy, you shouldn’t have to wait weeks for your gear to arrive. We ship fast so you can keep your cleanroom project on schedule.

    We service everything we sell. That means you get faster troubleshooting support and better response times than you would with other manufacturers or manufacturer’s reps.

    Special pricing is available for your business. Contact us and set up an account to make sure you get the best price available on every purchase.


    We guarantee you’ll get the right instrument for your cleanroom. If it isn’t exactly right, we’ll swap it out and find the right choice. If for some reason we don’t carry what you need, we’ll point you to a source that does (we’ll never sell you an alternative that doesn’t do exactly what you need it to do).

    Summary

    Contact and separation between two surfaces creates static electricity, which can often cause materials like paper, plastic, textiles and other non-conductive materials to randomly attract to or repel from themselves or their surroundings.

    Features & Benefits

    • Small profile for installation in tight spaces

    • Available in lengths up to 12 feet

    • Versatile, adjustable mounting hardware for ease of installation

    • Enlarged air-dielectric cavity at end cap dramatically improves reliability

    • Capacitively coupled 316 stainless steel emitter pins for shockless operation

    • Integral 72″ High Voltage cable in a flex conduit

    • Spring-loaded connector kit fits many 7.0~8.0kv power supplies

    Technical Data

    • Outer Bar: 0.75″W x 0.88″H Clear Anodized Aluminum Extrusion

    • Overall Length: 4.75″ to 142.75″ in 3″ increments (custom sizes available)

    • Effective Length: 1.06″ less than overall length

    • Optimum Range: 0.75″ to 3″ from target

    • Emitters: 316 Stainless Steel spaced ¾” on-center

    • Mounting: Universal Brackets with adjustable 8-32 x 0.5″ studs & hex-nuts (included)

    • Certification: UL, cUL, CE High Voltage

    • Cable: 72″ High Voltage Cable in Flex Conduit, with factory installed spring-loaded connector to mate with a TSN70, TSN75A, or comparable 7.0kV ~ 8.0kV power supply (sold separately). Optional shielded HV cable available

    SPEC SHEETS

    BRE2200 Rectangular Static Bar Spec Sheet.pdf

    Download

    TECH MANUAL

    BRE2200-Static-Bar-Manual.pdf

    Download
