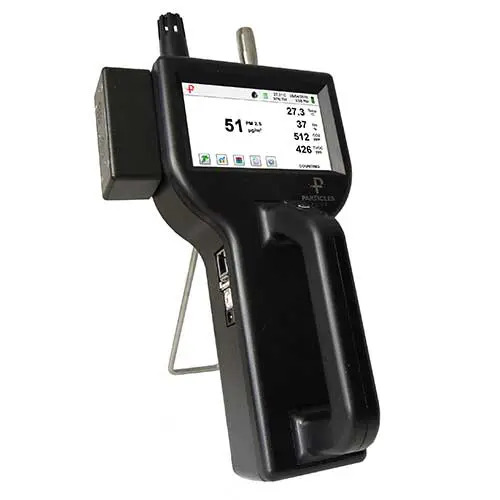

    Models 8301-AQM1 and 8301-AQM2

    (CO2, Temp, RH, and TVOC)

    The Particles Plus® 8301-AQM1 and 8301-AQM2 Series Handheld Particle Counter and Environmental Monitor measures 0.3 to 25 µm particles with mass concentration and stores indoor air quality measurements of temperature, relative humidity, CO2, and TVOC in the 8301-AQM2. This instrument is the most versatile handheld Air Monitor available, with advanced power management and the industry’s first sleep mode, allowing for battery operation of periods that can exceed a month on a single charge. The AQM Series can be used as a stand-alone battery operated instrument or it can be easily integrated into a building automation and facility monitoring system via Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232 connection.

    The AQMs reports and displays 6 user-selectable particle size channels, as well as carbon dioxide (CO2), temperature, and relative humidity. The model 8301-AQM2 includes a PID Sensor for TVOC. The instrument monitors PM1, PM 2.5, PM5, PM 10 & TPM (and any other PM size value the user specifies) with an easy-to-use Channel Management control panel. The instrument also monitors flow, sensor status, date of last calibration, serial number, laser on-time, and date of manufacture for easy maintenance and warranty management.

    User friendly field calibration for the integrated environmental sensors allows for single or dual point offsets, and ensures accuracy for air quality investigations. View data and generate environmental reports real-time on screen, via printer or USB key, or export to Particles Plus® Instrument Management Software. Particles Plus® instruments can be controlled and monitored remotely via web browser from any PC, tablet or smartphone supporting 20 concurrent user sessions.

    The 8301-AQM1 and 8301-AQM2 store up to 45,000 time stamped particle count and environmental data records which provides data redundancy on every instrument. The AQMs mass concentration mode approximates density in µg/m³ and allows for density and refractive index corrections to ensure accuracy. All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 8301-AQM1 and 8301-AQM2 ensure compliance and accuracy with an on-board pulse height analyzer.

    Features & Benefits

    • Measures 0.3 μm to 25 μm

    • 0.1 CFM (2.83 LPM)

    • Large easy-to-use icon driven color touch screen display

    • Approximates mass concentration in μg/m3 and indicates simultaneous PM values

    • Industry’s highest concentration of 30,000,000 particles/ft3 @ 10% coincidence

    • User-selectable, adjustable particle channel sizes

    • 8301-AQM1 measures CO2, temperature and humidity. The 8301-AQM2 includes TVOC.

    • Stores up to 45,000 sample records

    • Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232

    • Static or dynamic IP address (DHCP) connects to a local network or the Internet

    • Seamless integration into a facility monitoring system with MODBUS RTU, ASCII or TCP

    • Internet of Things JSON output allows for cloud based data storage and retrieval

    • Included software permits remote operations, data management, diagnostics and more

    • Displays and externally prints information with optional printer

    • Internal audible alarm with user selectable thresholds for all environmental parameters

    • Advanced power management for long battery operation and patented sleep mode

    • Easy configuration and transferable from instrument to instrument

    • User friendly field calibration with single or dual point offsets for all sensors

    • Remote diagnostics allows for remote service investigation through the Internet

    • User-selectable channel sizes

    • Long life laser diode technology

    • Lightweight high-impact injection molded plastic enclosure

    • 2 year limited warranty. Extended warranties available.

    Specifications

    Models8301-AQM1 and 8301-AQM2
    Size Range0.3 to 25 μm
    Size ChannelsFactory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
    Flow Rate / Accuracy0.1 CFM (2.83 LPM) / +/- 3%
    Aerosol Concentration Range0.01 to 20,000 μg/m³
    Concentration Limits30,000,000 particles/ft3 @ 10% coincidence
    Light SourceLong life laser diode
    Resolution0.0003 μg/m3
    Zero StabilityNo appreciable drift
    Count ModesReal-Time Meter and graph, cumulative/differential count/m³ and count/ft³, and mass concentration (PM)
    Log IntervalMinimum 1 second with no hold time, maximum 99 hours
    CalibrationNIST traceable
    Display4.3" (10.9 cm) WQVGA (480x272) color touch screen
    Printer(Optional) External thermal printer available
    Internal Vacuum PumpInternal pump with automatic flow control
    Filtered ExhaustInternal HEPA filter
    Number of Channels6
    Custom Size ChannelsCalibration for custom size channels available
    Audible AlarmAdjustable built-in alarm
    Communication ModesEthernet, USB. (Optional) Wireless 802.11 b/g, RS485 or RS232.
    Environmental Sensors 8301-AQM1Includes NDIR CO2 (0-5000 ppm, resolution 1 ppm, accuracy ±1% FS, Response rate 20 seconds), temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% RH
    Environmental Sensors 8301-AQM2Includes all sensors in the 8301-AQM1 and TVOC PID (standard on the 8301-AQM2), 0-50 ppm / minimum detection level 5 ppb, accuracy ±1.5%, Response rate <3 seconds
    AlarmAlarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
    StandardsISO 21501-4 and JIS B9921
    Instrument CalibrationRecommended minimum once per year. Gases, temperature and humidity sensors field calibratable.
    External SurfaceLightweight high-impact injection molded plastic enclosure
    Dimensions (L x W x H)6.33" x 4.25" x 12.26" (16.1 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes
    Weight2.5 lb (1.1 kg)
    AccessoriesOperating Manual and IMS Software on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, USB cable, and power supply
    Optional AccessoriesCalibration cap for gas sensor, carrying case, external printer, isokinetic probes, barb fittings, spare battery, external battery charger, printed manual, and IMS-RT monitoring system
    Data Storage45,000 sample records (rotating buffer) includes particle count data, environmental data, locations, times and annotations, scrollable on screen or printout
    Sample Time1 second to 99 hours
    Power110 to 240 VAC 50/60 Hz universal in-line power supply
    Operating Conditions41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
    Storage Conditions32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
    Warranty2 year limited warranty. Extended warranties available.

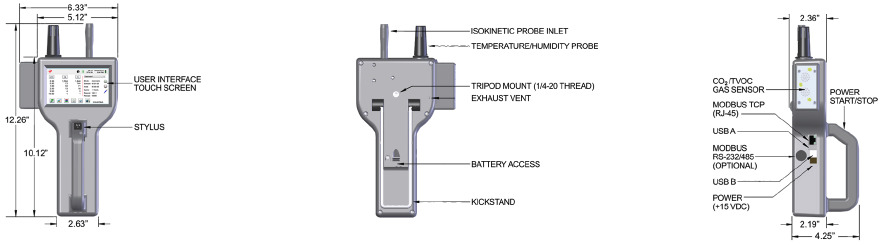

    Diagram
