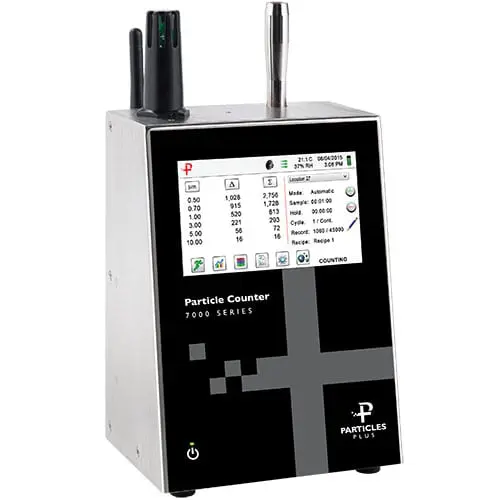

Model 7501-30
0.5 – 75 µm @ 0.1 CFM with long-life internal pump & battery
The Particles Plus® 7501-30 Remote Particle Counter measures 0.5 to 75.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMPAnnex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® Instrument Management Software. Particles Plus® counters can be controlled and monitored remotely via web browser. The instruments’ mass concentration mode approximates density in µg/m3 and allows for density and refractive index corrections to ensure accuracy.
The 7501-30 can be used as stand-alone battery operated instruments or it can be easily integrated into a building automation and cleanroom management system via Ethernet, USB, or (optional) Wireless 802.11 b/g, RS485 or RS232.
All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 7501-30 ensures compliance with an on-board pulse height analyzer.
Features & Benefits
Measures 0.5 μm to 75 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Large easy-to-use icon driven color touch screen display
Temperature and relative humidity probe included
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
Static or dynamic IP address (DHCP)
Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Light weight stainless steel enclosure
2 year warranty. Extended warranties available.
Specifications
Model | 7501-30 |
---|---|
Size Range | 0.5 to 75 µm |
Size Channels | Factory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 30.0 μm Variable binning - user defined channel size |
Counting Efficiency | 50%@ 0.5 µm; 100% for particles >0. 75 µm per JIS |
Flow rate | 0.1 CFM (2.83 LPM) |
Concentration Limit | 15,000,000 Particles/ff'@ 10% coincidence loss |
Battery Run Time | >10 hours continuous operation |
Light Source | Long life laser diode |
Zero Count | <1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction. |
Count Modes | Real-Time Meter and graph, cumulative/differential count/ni' and count/ff', and mass concentration (PM) |
Count Alarms | 1 to 9,999,999 counts |
Calibration | NIST traceable |
Display | 4.3" (10.9 cm) WQVGA(480x272) color touch screen |
Printer | (Optional) External thermal printer available |
Vacuum Source | Internal pump with automatic flow control |
Filtered Exhaust | Internal HEPA filter |
Number of Channels | 6 |
Custom Size Channels | Calibration for custom size channels available |
Audible Alarm | Adjustable built-in alarm |
Battery | Removable Li-ion |
Battery Recharge Time | 4 hours within instrument (<2 hours with external battery charger) |
Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
Recipes | 50 user-configurable recipes |
Communication Modes | Ethernet and USB. (Optional) Wireless 802.11 b/g, RS485 or RS232. |
Environmental Sensor | Temp and RH probe 32° to 122°F (0° to 50°C) ±1°F (0.5°C), 15-90% ±2% relative humidity |
Alarm | Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow |
Standards | ISO 21501-4 and JIS B9921 |
Instrument Calibration | Recommended minimum once per year |
External Surface | Stainless steel |
Dimensions (L x W x H) | 5.22" x 3.81" x 9.42" (14.0 cmx 9.7 cmx 23.9 cm) includes barb fittings |
Weight | 2.6 lb (1.18 kg) |
Accessories | Operating manual and IMS Software on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, USB cable, power supply and cable |
Optional Accessories | Printed manual, temperature relative humidity sensor , isokinetic probes, barb fittings, purge filter, data cable, sample tubing, IMS-RT monitoring system |
Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout. |
Sample Locations | Up to 1,000 locations 20 characters long |
Sample Time | 1 second to 99 hours |
Power | 110 to 240 VAC 50/60 Hz universal in-line power supply |
Operating Conditions | 41° to 104°F (5° to 40°C) /20% to 95% non-condensing |
Storage Condition | 32° to 122°F (0° to 50°C) / Up to 98% non-condensing |
Warranty | 2 year limited warranty. Extended warranties available. |

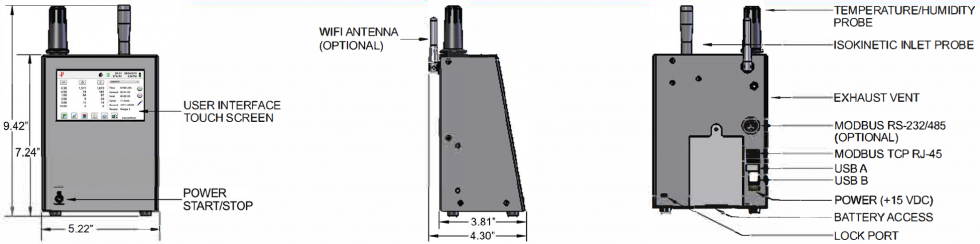

Diagram
