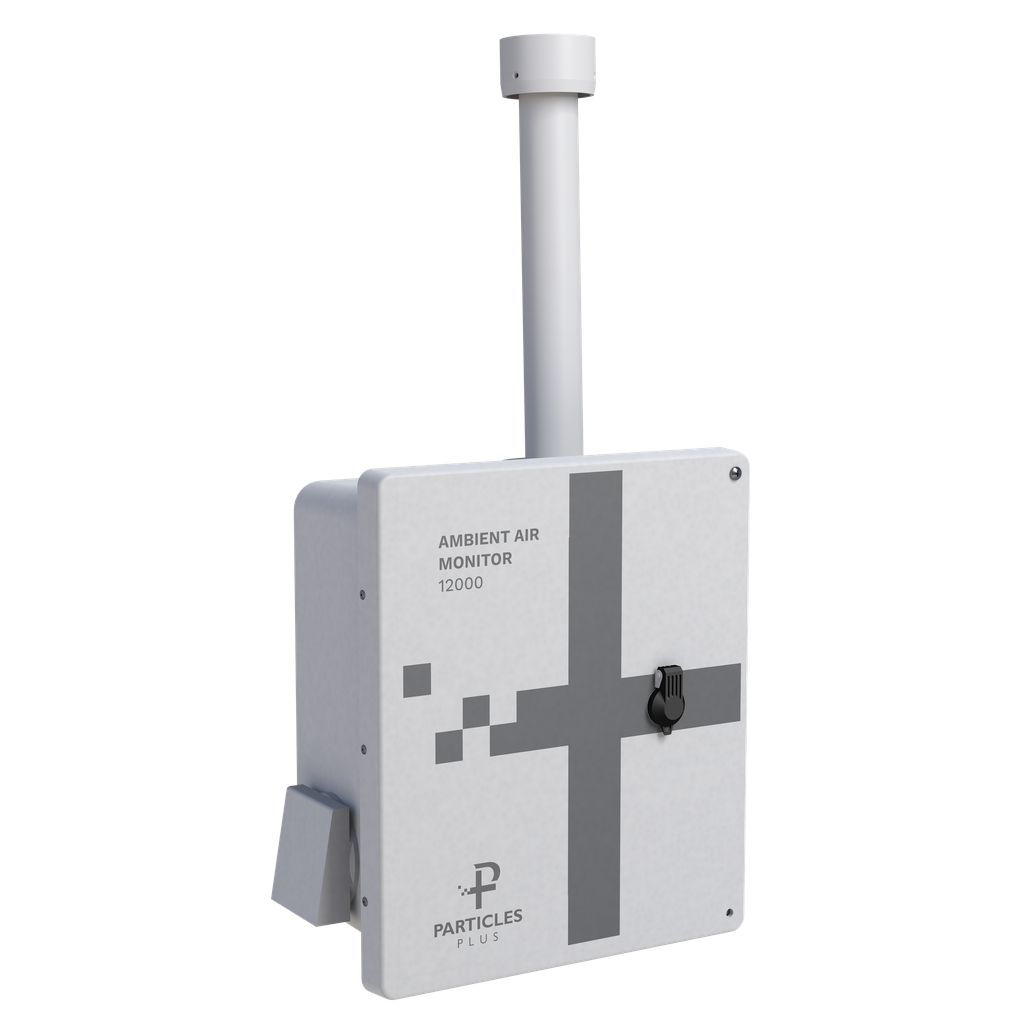

12000 Ambient Air Monitor
Condensation Particle Counter & Optical Particle Counter
The Particles Plus 12000 is the first real-time dual mode ambient monitor to feature both a condensation particle counter and an optical particle counter in an integrated unit. The 12000 condensation particle counter is designed to detect and count aerosol particles by first enlarging the particulates using a supersaturated vapor. These robust monitors provide reliable, accurate measurement of airborne particles across a very wide size range (from fines to ultrafines) allowing for the detection of environmental and public health concerns involving airborne particulates.
Realtime Data
The optical particle counter (OPC) bins fine particulates in up to 30 particle size channels (from 0.3 μm to 10 μm) which are stored in on-board memory at a user-defined data sampling rate (1 second to 99 hours per sample). The condensation particle counter (CPC) measures ultrafine particulates as small as 5 nm (0.005 μm) and provides a total particle count above this threshold, this data is also stored in each of the above samples to provide a more complete view of air quality.
Internet-Enabled
Particles Plus systems are configured to allow users to push real-time data to the cloud where sensor outputs can be visualized by authorized stakeholders.
Fully Integrated Environmental Sensor System
Integration of additional sensors for measurement of environmental and meteorological parameters including relative humidity, temperature, barometric pressure
Applications
Airborne Pollution and Environmental Research
Perimeter or Fence-line Monitoring for Construction, Remediation or Hazardous Waste Sites
Mine and Quarry Fence-line Monitoring for dust control operations
City Wide or Community Air Pollution Monitoring
Roadside Emissions Monitoring
Medical Facilities Property Monitoring
Power Line Wild-Fire Monitoring
Environmental Disasters
Monitor for 24 hours a day, 7 days a week, 365 days a year
Features & Benefits
User-selectable PM sizes from 0.3 to 10 μm (from the OPC)
Total particulate counts above the ultrafine threshold (0.005 μm, from the CPC)
Closed-loop humidity control for the OPC airstream
Closed-loop condensation control within the enclosure
CPC Aerosol Concentration Range of 0 to 100,000 particles per cubic centimeter
ULTRAGUARD® Fiberglass reinforced polyester NEMA 4 rated outdoor tamper-proof
enclosure with internal thermal control
Optional pole or tripod mount options
Optional Cloud based data management software subscription available for remote
monitoring
Monitor for 24 hours a day, 7 days a week, 365 days a year
Specifications
| Optical Particle Counter | Condensation Particle Counter | |
| Measured Parameter | Fine particle counts, concentration and mass | Ultrafine particle concentration |
| Operating Principle | Optical light scattering | Optical light scattering after water vapor growth |
| Condensation Approach | None | Near-adiabatic expansion with single particle counting |
| Concentration Range | 0.01 to 20,000 μg/m3 (50,000,000 particles/ft3) | 0 to 100,000 particles/cm3 |
| Particle Size Range | 0.3 to 25 µm | 0.005 to 3.0 µm |
| Size Channels | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm variable binning | 0.005 μm threshold (one size bin) |
| Efficiency | 6s cycle time | ±10% below 30,000/cm3, ±20% at higher concentrations |
| Sample Rate | Minimum 1 second with no hold time, maximum 99 hours | 6s cycle time |
| Number of Channels | Up to 30 channels | 1 |
| Liquid Requirement | None | Distilled water |
| Flow Rate | 1.2 LPM | Variable |
| Internal Vacuum Pump | Internal pump with closed-loop control | Internal pump with closed-loop control |
| Operating Conditions | 4º to 122ºF (-20º to 50ºC) / 20% to 95% non-condensing | 4º to 122ºF (-20º to 50ºC) / 20% to 95% non-condensing |
| Display | Calibration for custom size channels available | |
| Custom Size Channels | Calibration for custom size channels available | |
| Communication Modes | Ethernet, USB. (Optional) Wireless 802.11 b/g, RS485, RS232 or LoRaWAN | |
| Environmental Sensor | Temperature -4º to 122ºF (-20º to 50ºC) ±1ºF (0.5ºC) Relative Humidity 0 -100% ± 2%RH | |
| Alarm | Alarms for all particle values, environmental sensors, flow and sensor failure | |
| Instrument Calibration | Particle sensor recommended once per year | |
| User Calibration | Field calibration of temperature and humidity possible with included utility software | |
| External Surface | 12.85” x 7.41” x 25.54” (32.7 cm x 18.9 cm x 64.9 cm) includes barb fittings | |
| Dimensions (L x W x H) | 12.85” x 7.41” x 25.54” (32.7 cm x 18.9 cm x 64.9 cm) includes barb fittings | |
| Weight | 15.1 lbs. (6.84 kg) | |
| Accessories | Quick start guide, operating manual on USB flash drive, mounting feet | |
| Optional Accessories | Internal 45,000 sample records (rotating buffer) including particle count data and environmental data | |
| Data Storage | Internal 45,000 sample records (rotating buffer) including particle count data and environmental data | |
| Power | 110 to 240 VAC 50/60 Hz universal in-line power supply | |
| Warranty | 2 year limited warranty. Extended warranties available |

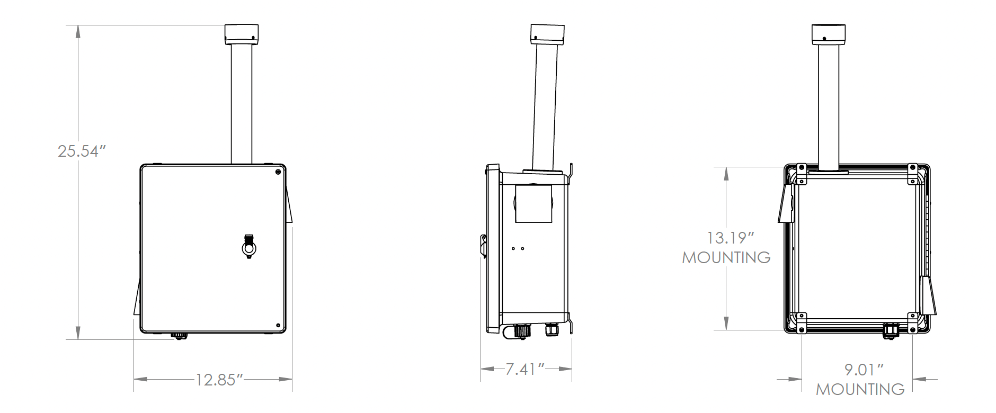

Diagrams
